1 / 3

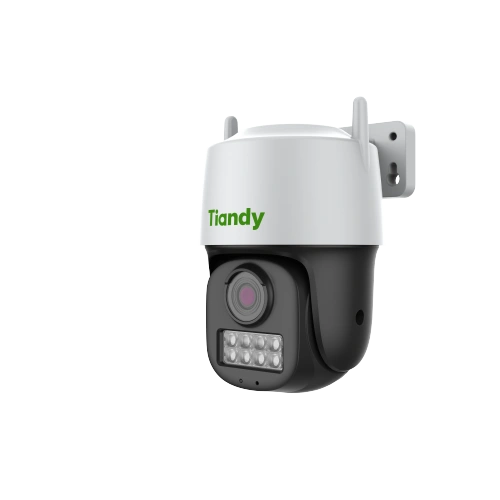

IP PTZ CAMERA INDOOR
48,70 €
TC-H342N Spec:I2W/WIFI/Eu/4mm/V4.1
Series: WI-FI SERIES ; Resolution: 2560 x 1440, 2304 x 1296, 1920 x 1080 ; Sensor: 1/3 ” ; View angle: 78 ° ; Range of IR illumination: 20 m ; White light LED illuminator range: 10 m ; Image compression method: S+265 ; Memory card slot: Micro SD card support up to 512GB ; Audio: Microphone built-in, Speaker built-in, Bi-directional audio streaming support ; Main features: Wi-Fi Module – IEEE 802.11 b/g/n, 2.4 GHz, ; Power supply: 12 V DC ;
Description du produit
Camera
| Image Sensor | 1/2.8″CMOS |
| Min. Illumination | Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s~1/100000s |
| Day&Night | IR-cut filter with auto Switch (ICR) |
| Smart IR | Yes |
| WDR | DWDR |
| S/N | >38dB |
| Angle Adjustment | 0~340°(P); -15~110°(T) |
Lens
| Lens Type | Fixed focal lens |
| Focal Length | 4mm |
| Lens Mount | M12 |
| Aperture Range | F1.6 |
| Aperture Type | Fixed |
| Field of View | 87.7°(H); 46.7°(V); 98.6°(D) |
| DORI Distance | Detect:65.3m Observe:25.9m Recognize:13.1m Identify:6.5m |
Pan&Tilt
| Pan Speed | 30°/s |
| Tilt Speed | 25°/s |
| Preset | 255 |
Illuminator
| IR LEDs | 2 |
| IR Distance | Up to 50m |
| Wavelength | 850nm |
| White LEDs | 2 |
| Whitelight Distance | 15m |
Compression Standard
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | 32k~4Mbps |
| Audio Compression | G.711A/G.711U |
| Audio Sampling Rate | 8kHz/16kHz |
| Max. Resolution | 3MP,2304×1296@25fps |
| Main Stream | PAL:25fps(2304×1296, 1920×1080, 1280×720, 704×576, 640×480) NTSC:24fps(2304×1296), 30fps(1920×1080, 1280×720, 704×480, 640×480) |
| Sub Stream | PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
| OSD | Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32; Lattice |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
Feature
| Exceptions Alarm | Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict; Network Disconnection |
| Linkage Method | Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture; Notify Surveillance Center |
| Video Analytics | Smart Alarm |
| Auto-Tracking | Yes |
Network
| ANR | Yes |
| Protocols | RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; TLS v1.2; IPv4; Telnet; Unicast; FTP |
| System Compatibility | ONVIF(Profile S/T) ; SDK; CGI; Milestone |
| Remote Connection | ≤2 |
| Client | Easy7 VMS |
| Mobile Client | EasyLive Plus |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
Wi-Fi
| Transmission Distance | Up tp 30m( based on actual environment) |
| Wireless Standard | IEEE802.11b/ 802.11g/802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | 20/40MHz |
| Wi-Fi Security | WPA-PSK/WPA2-PSK |
Interface
| Communication Interface | 1×RJ-45 (10/100 Base-T) |
| Built-in Mic | 1×Built-in Mic |
| Built-in Speaker | 1×Built-in Loudspeaker |
| Reset Button | Yes |
| On-board Storage | Support microSD/microSDHC/microSDXC card,up to 512GB |
General
| Web Client Language | 2 languages English/Turkish |
| Operating Temperature | -30℃~60℃(-22℉~140℉) |
| Operating Humidity | ≤95%RH |
| Storage Temperature | -30℃~60℃(-22℉~140℉) |
| Storage Humidity | 10%~95%RH(non-condensing) |
| Power Supply | DC12V±25%,Max. 12W |
| Protection | Surge4000V; ESD6000V; IP66 |
| Boundary Dimensions | 171(L)137(W)248(H)mm |
| Package Dimensions | 185(L)155(W)285(H)mm |
| GrossWeight | 1.22kg |
