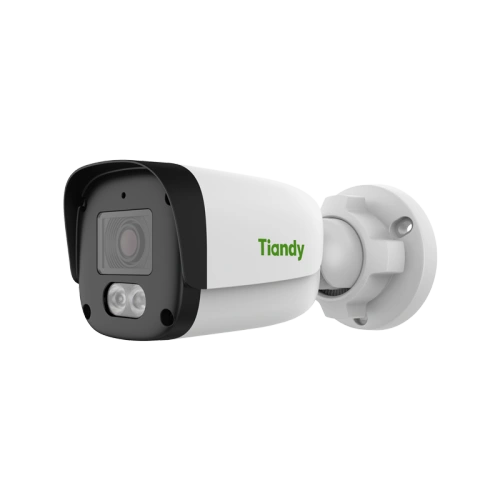

4MP Fixed IR Bullet Camera
43,49 €
TC-C34QN Spec:I3/E/Y/2.8mm/V5.0
Description du produit
|
Camera |
|
|
Image Sensor |
1/3″CMOS |
|
Min. Illumination |
Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR |
|
Shutter Time |
1s~1/100000s |
|
Day&Night |
IR-cut filter with auto Switch (ICR) |
|
Smart IR |
Yes |
|
WDR |
DWDR |
|
S/N |
>40dB |
|
Angle Adjustment |
0~360°(P); 0~80°(T); 0~360°(R) |
|
Lens |
|
|
Lens Type |
Fixed focal lens |
|
Focal Length |
2.8mm |
|
Lens Mount |
M12 |
|
Aperture Range |
F1.6 |
|
Aperture Type |
Fixed |
|
Field of View |
92.8°(H); 52.2°(V); 106.5°(D) |
|
DORI Distance |
Detect:56m Observe:22.2m Recognize:11.2m Identify:5.6m |
|
Illuminator |
|
|
IR LEDs |
2 |
|
IR Distance |
Up to 30m |
|
Wavelength |
850nm |
|
Compression Standard |
|
|
Video Compression |
S+265/H.265/H.264B/H.264M/H.264H |
|
Video Bit Rate |
32k~6Mbps |
|
Audio Compression |
G.711A/G.711U |
|
Audio Sampling Rate |
8kHz |
|
Image |
|
|
Max. Resolution |
4MP,2560×1440@20fps |
|
Main Stream |
PAL:20fps(2560×1440, 2304×1296, 1920×1080, 1280×720) NTSC:20fps(2560×1440, 2304×1296, 1920×1080, 1280×720) |
|
Sub Stream |
PAL:20fps(704×576, 704×288, 352×288, 640×360) NTSC:20fps(704×480, 704×240, 352×240, 640×360) |
|
BLC |
Yes |
|
HLC |
Yes |
|
AGC |
Yes |
|
3D DNR |
Yes |
|
White Balance |
Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
|
OSD |
Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48/64*64 |
|
Privacy Mask |
4 black static areas |
|
Defog |
Yes |
|
Feature |
|
|
General Alarm |
Motion Detection |
|
Exceptions Alarm |
IP Address Conflict |
|
Linkage Method |
Trigger Capture |
|
Network |
|
|
Protocols |
HTTP; TCP/IP; UDP; ICMP; DHCP; DNS; NTP; TLS v1.2; IPv4; Telnet; Unicast |
|
System Compatibility |
ONVIF(Profile S/T) ; SDK; CGI; Milestone; RTSP |
|
Remote Connection |
≤2 |
|
Client |
Easy7 VMS |
|
Moblie Client |
EasyLive Plus |
|
Web |
IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
|
Interface |
|
|
Communication Interface |
1*RJ-45 (10/100 Base-T) |
|
Built-in Mic |
Yes |
|
General |
|
|
Web Client Language |
12 languages English/Spanish/Italian/Turkish/Russian/Thai/French/Polish/Arabic/Vietnamese/Portuguese/Japanese |
|
Operating Temperature |
-30℃~60℃(-22℉~140℉) |
|
Operating Humidity |
≤95%RH |
|
Storage Temperature |
-30℃~60℃(-22℉~140℉) |
|
Storage Humidity |
10%~95%RH(non-condensing) |
|
Power Supply |
PoE:IEEE 802.3af,Max. 6W |
|
Protection |
Surge4000V; ESD6000V; IP67 |
|
Boundary Dimensions |
164(L)73(W)73(H)mm |
|
Package Dimensions |
180(L)90(W)95(H)mm |
|
GrossWeight |
0.3kg |
Spécifications techniques
| Model | TC-C34QN |
| Specifation | I3/E/Y/2.8mm/V5.0 |
